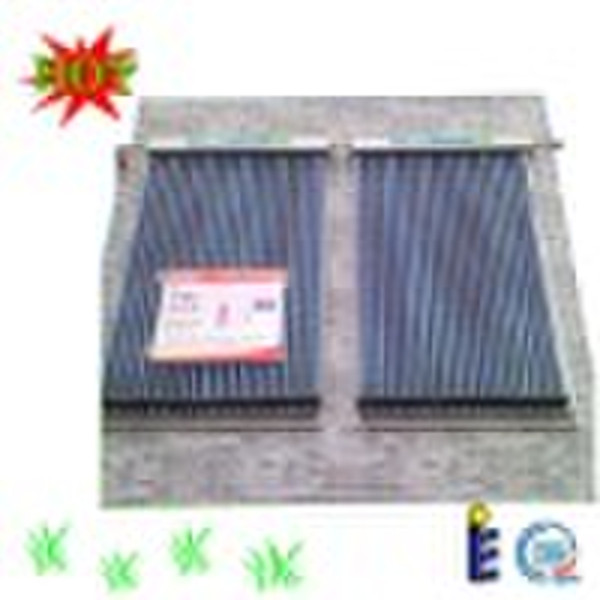

Heat Pipe Solar Water Heater Collector

Heat Pipe Solar Water Heater Collector Freeze Protection: Because the heat pipe is located within the evacuated glass tube, brief overnight temperatures as low as -20oC (14oF) will not cause the heat pipe to freeze. High heat conduction coefficient:is 2000-5000 times of matal materials. High quantity of heat conduction:is 1000times od metal materials. Low temperature difference:less than 4 difference in 2 meter long pipe. Model Type SHHPC Manifold casing material Aluminum painted un-oxygen layer Frame material (Aluminum or Stainless Steel or Galvanized Steel) and painted Layer Header pipe material Copper Heat pipe material Copper Insulation Polyurethane 55mm or Glass-reinforced polyester Rubber seals and rings UV stabilized high temperature silicon rubber Test pressure 9 bar Collector mounting Plane roof/slope roof Angle of operation 10-80 Inlet Outlet Φ22 or 3/4 inch male Specifications: MODEL Ligthing (m2) Heat pipe Supply hot water(L/ ) 20/40" container GW diameterlengthNo. SHHPC47/121.26Φ47mm1500mm1270/60133/276 28 SHHPC 47/181.8018110/60120/249 42 SHHPC 47/202.1020125/60110/227 46 SHHPC 47/303.1530180/6076/158 69 SHHPC 58/121.73Φ58mm1800mm12110/60118/244 40 SHHPC 58/182.5718150/6084/175 60 SHHPC 58/202.8820175/6077/160 64 SHHPC 58/304.3230260/6052/106 98 Sino-American cooperation technology, needs only temperature difference, sunshine is unnecessary .no water in tubes so never burst and fur up, high heat conduction and never hibernate. Features: 1. Copper heat pipes for rapid heat transfer 2. Combined harmoniously with architecture, free maintenance 3. Suitable for mains pressure water (up to 0.6MPa) 4. Corrosion resistant 5. The perfect solar collector for domestic solar water heater systems specification: 1.Manifold material: 304 stainless steel, Thickness:0.7mm 2.Insulation: Rock wool 3.Vacuum tube:3.3 high borosilicate glass, thickness: 1.6mm, Diameter: 47/58mm, length: 1500/1800mm, hail resistance: 28mm 4.Heat pipe: TU1 oxygen free red copper 5.Seal ring: silicon rubber 6.Frame: 201 stainless steel, Thickness: 1.2mm 7.Reflector: stainless steel If any interest,welcome to contact me on 0086-13401342073.
