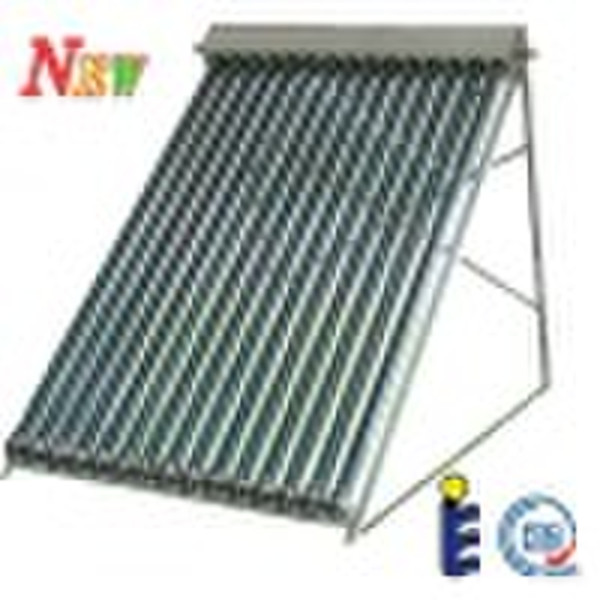

Heat Pipe Pressurized Solar Collector(CE,ISO)

Pressurized Heat Pipe Solar Collector 1. it's pressurized system separated with pressurized tank.2. Manifold is 304 stainless steel, it can resist rusting, orAluminum painted un-oxygen layer for option.3. It uses heat pipe to transfer heat energy, and it can used in -35 Celsius degree, if the heat pipe is broken, you only need to change the outer vacuum tubes.4. it's very popular in Europe.Technology:Model Type SHHPC Manifold casing material Aluminum painted un-oxygen layer Frame material (Aluminum or Stainless Steel or Galvanized Steel) and painted Layer Header pipe material Copper Heat pipe material Copper Insulation Polyurethane 55mm or Glass-reinforced polyester Rubber seals and rings UV stabilized high temperature silicon rubber Test pressure 9 bar Collector mounting Plane roof/slope roof Angle of operation 10°C-80°C Inlet Outlet Φ22 or 3/4 inch male Specification:MODEL Lighting (m2) Heat pipe Supply hot water(L/ °C ) 20/40" container GW KG
