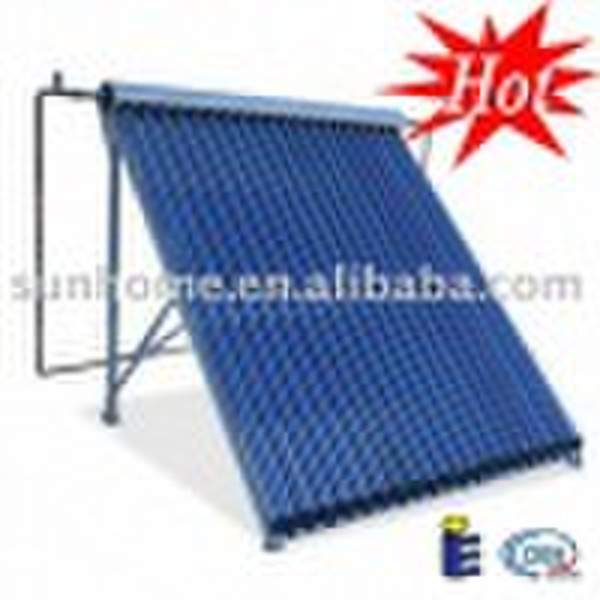

2011 Solar Keymark Sunhome heat pipe solar collect

2011 hot!Solar Keymarkheat pipe solar collectorBrif introduction Used in split solar heating system for water heating, heat Pipe Solar collectors with different quantity of vacuum tube can be assembled with a water tank of different capacity. Perfectly designed, suitable for any architectural style, and harmoniously integrated with owners building. Collector can be installed in a single house as well as a commercial building with a centralized hot water system! The collectors integrated and modularized design is optimized for both installation and operation. Economical, affordable, energy saving, environmentally friendly! Characteristics: 1. Easy installationQuick start 2. Connected to tap water, working under pressure 3. Average daily heat efficiency> 60 4. Vacuum tube separated from water, high thermal stability, no tube blast 5. No water running in the vacuum tube, this eliminates the low heat transfer efficiency of water 6. Collectors can be connected either in series or in in parallel to increase utilization and flexibility of the installation. 7. Single broken vacuum tubes do not affect the operation of the remaining system. 8. water jackets protect the rubber rings and dust-proof rings from aging and falling off 9. The high-tech treated vacuum tube and super heat pipe release the pressure on proper time 10. Waterless vacuum tubes also solve any issues related to calcification of the tubes and the associated reduction in efficiency. Model Type SHHPC Manifold casing material Aluminum painted un-oxygen layer Frame material (Aluminum or Stainless Steel or Galvanized Steel) and painted Layer Header pipe material Copper Heat pipe material Copper Insulation Polyurethane 55mm or Glass-reinforced polyester Rubber seals and rings UV stabilized high temperature silicon rubber Test pressure 9 bar Collector mounting Plane roof/slope roof Angle of operation 10-80 Inlet Outlet Φ22 or 3/4 inch male Models available MODEL Ligthing (m2) Heat pipe Supply hot water(L/ ) 20/40" container GW KGdiameterlengthNo. SHHPC47/121.26Φ47mm1500mm1270/60133/276 28 SHHPC 47/181.8018110/60120/249 42 SHHPC 47/202.1020125/60110/227 46 SHHPC 47/303.1530180/6076/158 69 SHHPC 58/121.73Φ58mm1800mm12110/60118/244 40 SHHPC 58/182.5718150/6084/175 60 SHHPC 58/202.8820175/6077/160 64 SHHPC 58/304.3230260/6052/106 98 for more infor pleases call me by 8613646147736
